- # Bioclimatic
Freestanding Pergolas
# Pergolas & Carport
Simple and Reliable Assembly
The Reduxa aluminum structural elements have been designed to ensure fast and durable assembly.
Maximum Dimensions Table
| D | |||
|---|---|---|---|
| A | Overall Length | 115 x 115 155 x 155 | 7430 mm 7510 mm |
| B | Total Projection | 115 x 115 155 x 155 | 7430 mm 7510 mm |
| C | Total Height | 115 x 115 155 x 155 | 3000 mm 3500 mm |
| E | Perimeter Beam Height | 270 mm |
Maximum spans table according to installation zones
| Maximum Span Ratio (63mm panels) Maximum Permissible Weight/m² for 1/100 deflection | 2500 mm 3000 mm 3500 mm 4000 mm 4500 mm 5000 mm | 315 daN/m² 195 daN/m² 128 daN/m² 88 daN/m² 63 daN/m² 50 daN/m² |
ALUMINUM
10-YEAR WARRANTY
COATING
15-YEAR WARRANTY
A QUALIBAT
“RGE” Certification
PRODUCTS UNDER
TECHNICAL ASSESSMENT
ISO 9001
CERTIFIED

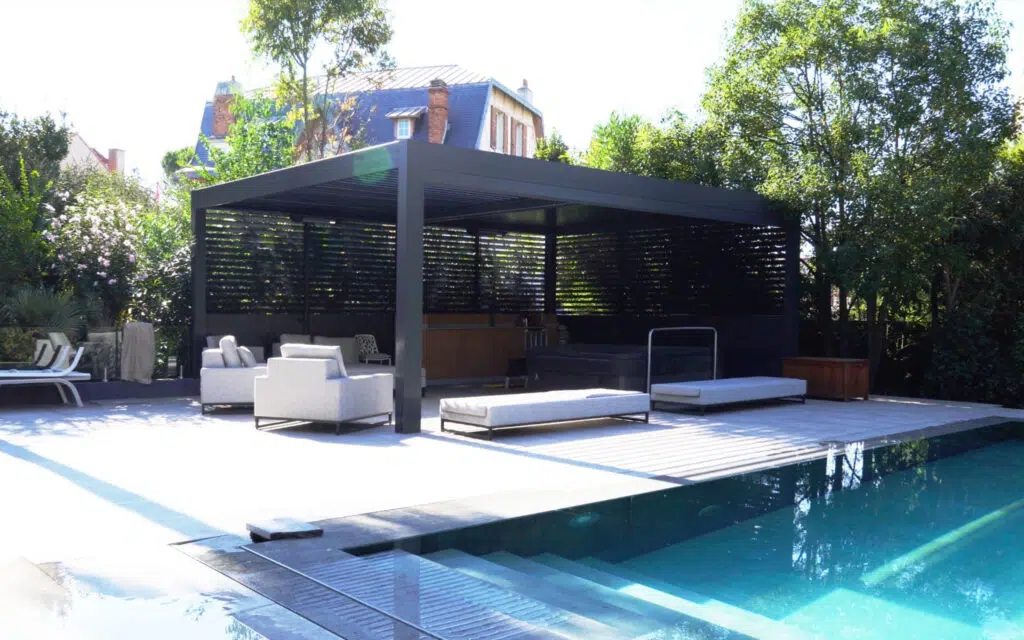

Reimagine Your Outdoor Space with Our Bioclimatic Pergolas
Discover our premium self-supporting pergolas from Nicolazi Design, a true fusion of design and functionality for your outdoor space. Our self-supporting pergolas are custom-made to create an exceptionally elegant and well-structured outdoor area, offering you a haven of comfort in the open air.
Crafted with high-quality materials, our self-supporting pergolas are designed to withstand the elements and provide exceptional durability. With their meticulous and contemporary design, they add a touch of elegance to your garden or terrace, creating an ideal space to relax and entertain.
Our custom self-supporting pergolas also offer great flexibility in terms of design, dimensions, and options, allowing you to personalize the outdoor space of your dreams. Whether you're looking to create a shaded corner for outdoor dining or a peaceful relaxation space, our self-supporting pergolas fit perfectly to your needs.
Order now to transform your outdoor space into a premium haven of tranquility with our self-supporting pergolas. Enjoy the perfect blend of style and functionality for unforgettable moments in the great outdoors.

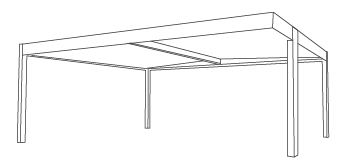

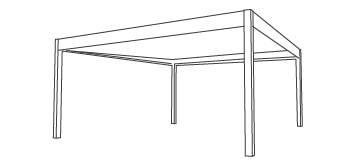

A variety of installation options for a unique space
(maxi 1300 mm)

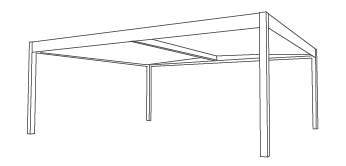

(Double slope)
Effective protection against weather conditions, guaranteed waterproofing
Resistant to loads up to 300Kg/m2 thanks to robust design
Large exclusive dimensions, up to 7.5m without intermediate posts
Integrated LED lighting within the structure, remote-controlled
Solar protection against UV rays, limiting vehicle aging
White aluminum sandwich panels, insulated with a thickness of 63mm
Factory prefabrication to ensure controlled assembly time
French-made and eco-friendly manufacturing
Share this product with your loved ones.
# Nicolazi Design
Make your pergola or carport unique with our accessories
# Complete Your Outdoor Space
Accessories
