# Pergolas & Carport
Simple and Reliable Assembly
The Reduxa aluminum structural elements have been designed to ensure fast and durable assembly.
![](https://nicolazi-design.com/wp-content/uploads/infos-techniques-768x475.png)
& Self-supporting thickness 63 mm
![](https://nicolazi-design.com/wp-content/uploads/img-tableau-dimentions-pergolas-768x405.png)
Maximum Dimensions Table
D | |||
---|---|---|---|
A | Overall Length | 115 x 115 155 x 155 | 7430 mm 7510 mm |
B | Total Projection | 115 x 115 155 x 155 | 7430 mm 7510 mm |
C | Total Height | 115 x 115 155 x 155 | 3000 mm 3500 mm |
E | Perimeter Beam Height | 270 mm |
Maximum spans table according to installation zones
Maximum Span Ratio (63mm panels) Maximum Permissible Weight/m² for 1/100 deflection | 2500 mm 3000 mm 3500 mm 4000 mm 4500 mm 5000 mm | 315 daN/m² 195 daN/m² 128 daN/m² 88 daN/m² 63 daN/m² 50 daN/m² |
![](https://nicolazi-design.com/wp-content/uploads/garantie-aluminium-1.png)
ALUMINUM
10-YEAR WARRANTY
![](https://nicolazi-design.com/wp-content/uploads/qualimarine-1.png)
COATING
15-YEAR WARRANTY
![](https://nicolazi-design.com/wp-content/uploads/qualibat-rge-2.png)
A QUALIBAT
“RGE” Certification
![](https://nicolazi-design.com/wp-content/uploads/qm-1.png)
PRODUCTS UNDER
TECHNICAL ASSESSMENT
![](https://nicolazi-design.com/wp-content/uploads/iso-9001.png)
ISO 9001
CERTIFIED
Reimagine Your Outdoor Space with Our Bioclimatic Pergolas
Discover our premium self-supporting pergolas from Nicolazi Design, a true fusion of design and functionality for your outdoor space. Our self-supporting pergolas are custom-made to create an exceptionally elegant and well-structured outdoor area, offering you a haven of comfort in the open air.
Crafted with high-quality materials, our self-supporting pergolas are designed to withstand the elements and provide exceptional durability. With their meticulous and contemporary design, they add a touch of elegance to your garden or terrace, creating an ideal space to relax and entertain.
Our custom self-supporting pergolas also offer great flexibility in terms of design, dimensions, and options, allowing you to personalize the outdoor space of your dreams. Whether you're looking to create a shaded corner for outdoor dining or a peaceful relaxation space, our self-supporting pergolas fit perfectly to your needs.
Order now to transform your outdoor space into a premium haven of tranquility with our self-supporting pergolas. Enjoy the perfect blend of style and functionality for unforgettable moments in the great outdoors.

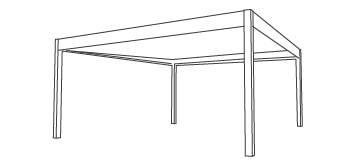

A variety of installation options for a unique space
![](https://nicolazi-design.com/wp-content/uploads/pergolas-autoportee-standardfond-blanc.png)
![](https://nicolazi-design.com/wp-content/uploads/Pergolas-autoportee-pied-deportefond-blanc.png)

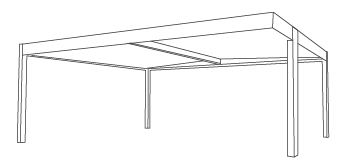

(maxi 1300 mm)
![](https://nicolazi-design.com/wp-content/uploads/Pergolas-autoportee-double-pentefond-blanc.png)

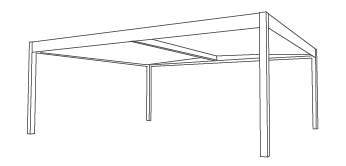

(Double slope)
![](https://nicolazi-design.com/wp-content/uploads/intemperies.png)
Effective protection against weather conditions, guaranteed waterproofing
![](https://nicolazi-design.com/wp-content/uploads/charge.png)
Resistant to loads up to 300Kg/m2 thanks to robust design
![](https://nicolazi-design.com/wp-content/uploads/Plan-de-travail-1-copie-6.png)
Large exclusive dimensions, up to 7.5m without intermediate posts
![](https://nicolazi-design.com/wp-content/uploads/eclairage.png)
Integrated LED lighting within the structure, remote-controlled
![](https://nicolazi-design.com/wp-content/uploads/Plan-de-travail-1-copie-3.png)
Solar protection against UV rays, limiting vehicle aging
![](https://nicolazi-design.com/wp-content/uploads/Plan-de-travail-1-copie-2.png)
White aluminum sandwich panels, insulated with a thickness of 63mm
![](https://nicolazi-design.com/wp-content/uploads/Plan-de-travail-1-copie-50x50.png)
Factory prefabrication to ensure controlled assembly time
![](https://nicolazi-design.com/wp-content/uploads/Plan-de-travail-1-50x50.png)
French-made and eco-friendly manufacturing
